DSR 12
Dehumidifiers

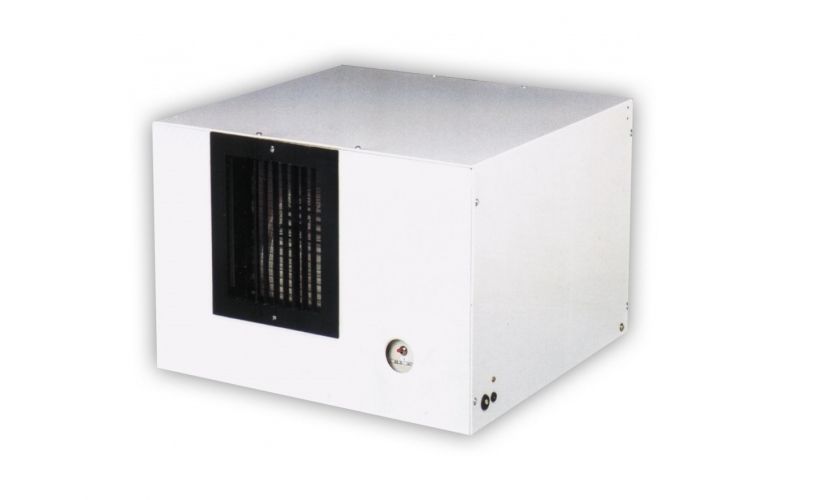

DSR dehumidifier is a solid machine, designed to be installed outside the swimming pool hall. Its usage is essential wherever high performance is needed.
catalog-sheet-dsr12.pdf
Velikost: 0,8 MB
Velikost: 0,8 MB
catalogue 2024.pdf
Velikost: 22,7 MB
Velikost: 22,7 MB
Both types of DSR devices are equipped with an external humidity regulators (humidistats) with low voltage power. The regulator (a small box) is installed on an appropriate place on the wall.
Specifications
| Dehumidification | 80 l / day |
| Air discharge | 1400 m3 / h |
| Air intake | in the front |
| Air output | at the back |
| Condensate outlet | 16 mm |
| Air filter area | 1855 cm2 |
| Voltage | 230 V / 50 Hz |
| Power consumption | 1,3 kW |
| Hygrostat | external |
| Refrigerant | R 407C |
| Working temperature | 10 - 35 °C |
| Dimensions (h/w/d) | 505/650/661 mm |
| Weight | 68 kg |
